Name: FL2G Automotive Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Cu-ETP1 bare or tinned according to DIN EN 13602

Insulation : Silicon rubber Standard:ISO 6722 Class F

Technical Parameters : Operating temperature:–40°C to +200°C

Contact Now

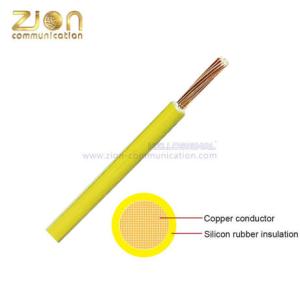

FL2G Automotive Cable
Product Description:
Conductor			Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation			Silicon rubber Standard:ISO 6722 Class F
Technical Parameters			Operating temperature: –40°C to +200°C
Application:
This silicon rubber insulated single core cable is used in battery lead-wire for automobiles.

Zion's Hot Types of FL2G Automotive cable
	Conductor Construction				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.		Electrical resistance at 20°C max.	Nominal thickness	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	Kg/km
0.50	16/0.21	1.10		37.10	0.48	2.00	2.30	8.00
0.75	24/0.21	1.30		24.70	0.48	2.20	2.50	10.60
1.00	32/0.21	1.50		18.50	0.48	2.40	2.70	13.50
1.50	30/0.26	1.80		12.70	0.48	2.70	3.00	17.90
2.50	50/0.26	2.20		7.60	0.56	3.30	3.60	29.50
4.00	56/0.31	2.80		4.71	0.64	4.00	4.40	46.70
6.00	84/0.31	3.40		3.14	0.64	4.60	5.00	66.00
10.00	80/0.41	4.50		1.82	0.80	5.90	6.50	113.00
16.00	126/0.41	6.30		1.16	0.80	7.70	8.30	173.00
25.00	196/0.41	7.80		0.74	1.04	9.00	10.00	266.00
35.00	276/0.41	9.00		0.53	1.04	10.40	11.00	361.00
50.00	396/0.41	10.50		0.37	1.25	12.40	13.50	526.00
70.00	360/0.51	12.50		0.26	1.25	14.20	15.50	750.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
