Name: Premium LUT Green Bare Copper Stranded Wire Optimal Performance
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Plenum

Certification : CE, ROHS, VDE, UL

Place of Origin : CHINA

MOQ : 500

Payment Terms : T/T, L/C

Supply Ability : 500000pcs / Month

Delivery Time : Normally 20 working days

Packaging Details : Carton

Conductor Material : Stranded Bare Copper

Dielectric Size : 0.061±0.004''nom.(1.56±0.10mm)

Dielectric Colors : 1.Red 2.Black

Contact Now

LUT Green Cable Plenum

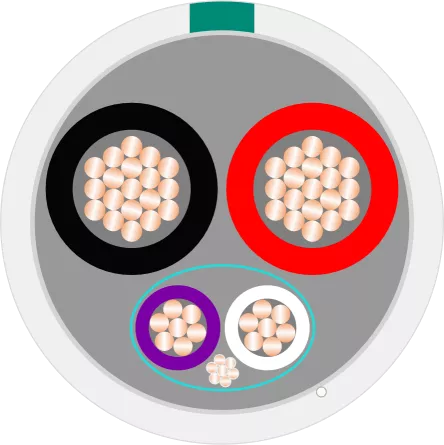

Key Information & Construction
SKU:	7111701
Assembly:	22/2C SH+18/2C (Green Stripe)
UL Certificate Number:	E541136 - CMP
UL Certificate Number:	E541137 - CL2P & CL3P
Element 1 (Data)	22AWG 2Cores Shielded
Conductor Material:	Stranded Bare Copper
Conductor Size:	22AWG/ 7×0.010" / 7×0.254mm
Dielectric Material:	Foam FEP
Dielectric Size:	0.052±0.004''nom.(1.32±0.10mm)
Dielectric Colors:	1.Violet 2.White
Drain Wire:	24AWG/7×0.2mm Stranded Tinned Copper
Shield:	Aluminum Malar Foil-100% Coverage
Element 2 (Power/Control)	18AWG 2Cores Unshielded
Conductor Material:	Stranded Bare Copper
Conductor Size:	18AWG/16×0.010"/16×0.254mm
Dielectric Material:	Plenum PVC-Low Smoke
Dielectric Size:	0.061±0.004''nom.(1.56±0.10mm)
Dielectric Colors:	1.Red 2.Black
Rip Cord	Yes
Out Jacket:	Material: Plenum PVC - Low Smoke
	Color: White(or Light Blue)/Green Stripe
	Wall Thickness: 0.0170". Nom(0.43mm)
	OD:0.213"±0.006“ (5.41±0.15mm)
Electrical & Physical Characteristics
DC Resistance	22AWG:14.8Ω/KFT	18AWG:6.92Ω/KFT
Capacitance	22AWG:22.3 pF/FT
Impedance	22AWG: 67Ω
Rated Voltage(V RMS)	300V
Operating Temperature	- 20 to 75 ℃ (- 4 to 167℉)
Order Informations
Marking	ZION LUT GREEN 22AWG/2C SH+18AWG/2C E541137 CL3P(UL) OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
Marking

Product Tags:

Green Bare Copper Stranded Wire
